ClARIFICATION ON DEPTH FILTER MODULE

CLARIFICATION ON DEPTH FILTER MODULE

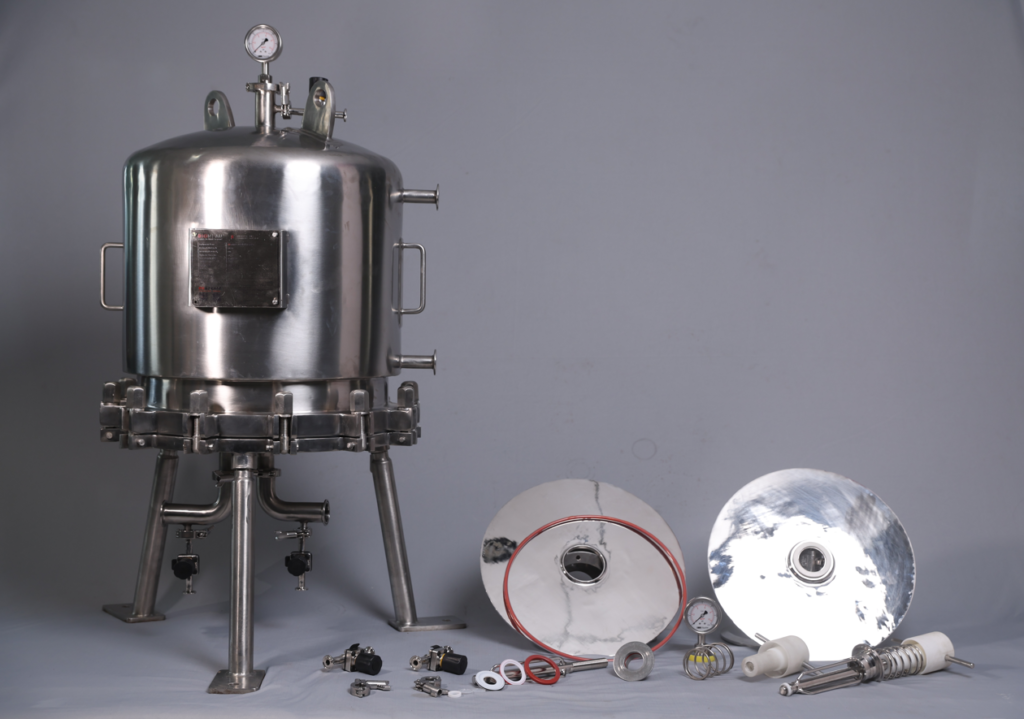

Bioneau® FilSTEMS™ Lenticular Depth Filter Housings are engineered for high-efficiency clarification, filtration, and polishing applications in the pharmaceutical, biotech, food & beverage, and chemical industries. Designed to accommodate lenticular depth filter modules, these housings enable enclosed, contamination-free filtration without the need for open-frame plate and frame filters.

The enclosed design minimizes operator exposure, improves process safety, and supports clean-in-place (CIP) and steam-in-place (SIP) procedures. Built from high-grade stainless steel and available in various sizes, these housings are optimized for clarity, throughput, and process reliability.

Offering versatility, the standard FS9160 lenticular depth filter housings are designed to accommodate one to four 12″ or 16″ diameter Zeta Plus filter cartridges, enabling a wide selection of filter media areas and flow rate capacities to suit various process needs.
For customized configurations, these housings can be easily adapted to hold fewer cartridges by using user-fitted shorter center-posts, allowing flexibility for small-scale runs, trials, or processes requiring lower throughput without compromising performance or hygiene.

Request a Quote

Hygienic, Enclosed Filtration – Prevents product exposure to the environment, ensuring operator safety and sterility.
High-Grade Construction – Manufactured from SS316L (standard) with polished internal surfaces (Ra ≤ 0.5 μm) for hygienic compliance.
Easy Module Change-Out – Quick-open closures and ergonomic design enable rapid filter replacement without tools.
Scalable Design – Available in sizes to hold 1 to 4 (or more) modules, enabling easy scale-up from lab to production.
CIP/SIP Compatibility – Fully steam-sterilizable and clean-in-place capable for reduced downtime.
Pressure-Rated Design – Robust construction for safe operation under high differential pressures.
Versatile Connection Options – Tri-clamp, DIN, or ANSI flanged inlets/outlets to match process needs.

Housing Model	Single shell/Split shell
MOC	SS316, SS316L, Hastelloy
No. of Modules	1, 2, 3, 4
Inlet/Outlet Connection	1"/1.5" Triclover/Flange
Module Diameter	8"/12"/16"
End Connection Attachment	DOE
Max Pr. Condition	10bar @ 40°C (130psi @ 104°F)
Max Temp. Condition	6.6bar @ 150°C (95psi @ 302°F).
Gaskets and Rings	Silicone / FERG / PERG / Viton / EPDM
Surface Finish	Electropolished
Roughness Average	< 0.5 µm
Drain Valve	Diaphragm Valve with 8mm Hose Connection
Gauge Port	1.5" TC
Sterilization	SIP/Autoclaving
Documentation	User Manual, COA, Hydraulic Test,
Special Documentation	IQ/ OQ/ DQ/ PQ*

Pharmaceutical & Biotechnology – Clarification of fermentation broths, cell culture harvest, buffer filtration, protein solutions, and vaccine production.
Food & Beverage – Clarification of wines, beers, juices, syrups, and edible oils.
Chemical Processing – Removal of fine particulates from specialty chemicals and intermediates.
Cosmetics & Personal Care – Clarification of lotions, creams, and active ingredient solutions.
Water Treatment – Polishing of process water, WFI (Water for Injection), and ultrapure water systems.
