The liquid storage system is mainly used in processes such as temporary storage and transfer of buffer solutions and intermediates. Duoning liquid storage system includes stainless steel and plastic liquid storage trolleys, collapsible liquid storage cubic boxes, plastic liquid storage drums, plastic trays, bases and other supporting containers. These products can be used with 2D and 3D liquid storage bags independently developed and produced by Lianghei (A Duoning company), which is suitable for different application scenarios from process development to large-scale manufacturing.
Provide complete range of models and specifications, meet the needs of liquid storage of various volumes Particular products can be customized.
| Product Name | Part No. | Volume | Description |
|---|---|---|---|

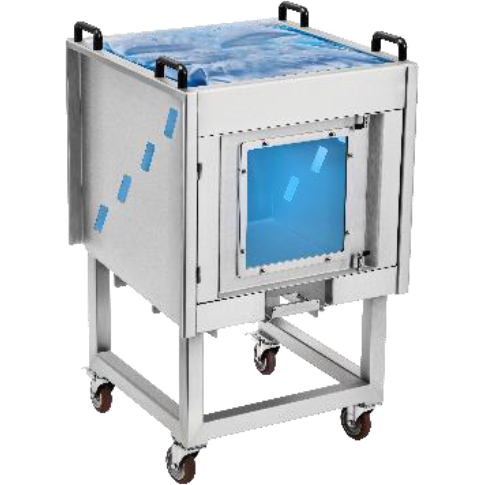

| *Stainless Steel Storage Cart, SUS304 | SSTank-50 L SSTank-100 L SSTank-200 L SSTank-300 L SSTank-500 L SSTank-650 L SSTank-1000 L SSTank-1500 L SSTank-2000 L SSTank-2500 L SSTank-3000 L | 50 L 100 L 200 L 300 L 500 L 650 L 1000 L 1500 L 2000 L 2500 L 3000 L |  |

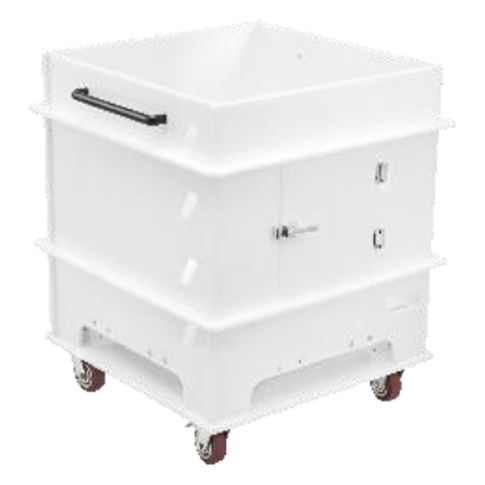

| Plastic Storage Cart, PE | PETank-50 L PETank-100 L PETank-200 L PETank-500 L PETank-1000 L | 50 L 100 L 200 L 500 L 1000 L |  |

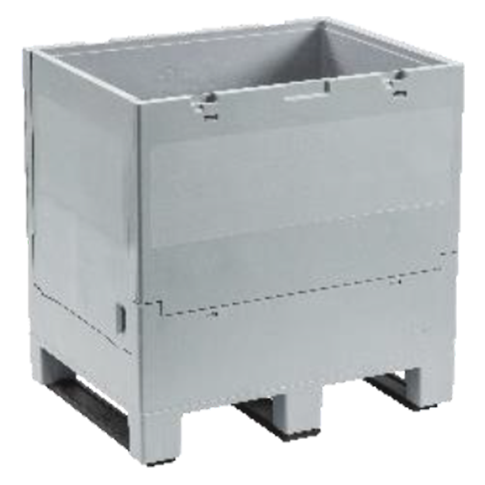

| Plastic collapsible liquid storage box, PP | PPTank-250 L PPTank-500 L PPTank-1000 L | 250 L 500 L 1000 L |  |
| Plastic collapsible liquid storage box, PP | PPTank-250L PPTank-500L PPTank-1000L | 250 L 500 L 1000 L |  |

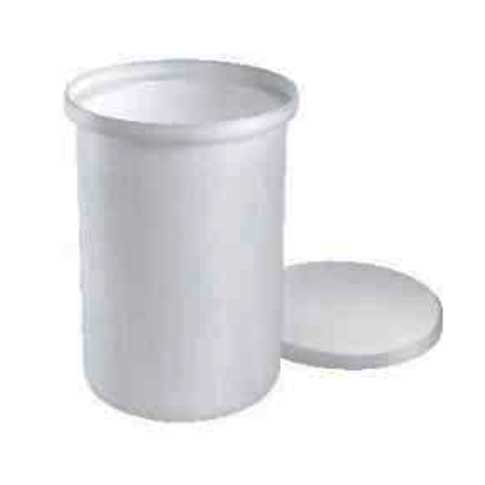

| ** Plastic liquid storage drum, PE | DNSPB-0005 DNSPB-0010 DNSPB-0005 DNSPB-0005 DNSPB-0005 DNSPB-0005 DNSPB-0005 DNSPB-0005 DNSPB-0005 | 19 L/5 gallon 38 L/10 gallon 57 L/15 gallon 113 L/30 gallon 208 L/55 gallon 303 L/80 gallon 378 L/100 gallon 568 L/150 gallon 757 L/200 gallon |  |

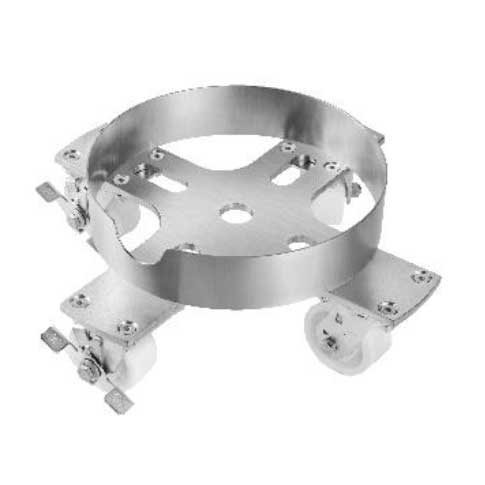

| Supporting base of the plastic liquid storage drum, including 4 silent universal wheels with locking function, SUS304 | SSDolly-19L SSDolly-38L SSDolly-57L SSDolly-113L SSDolly-208L SSDolly-303L SSDolly-378L SSDolly-568L SSDolly-757L | 19 L/5 gallon 38 L/10 gallon 57 L/15 gallon 113 L/30 gallon 208 L/55 gallon 303 L/80 gallon 378 L/100 gallon 568 L/150 gallon 757 L/200 gallon |  |

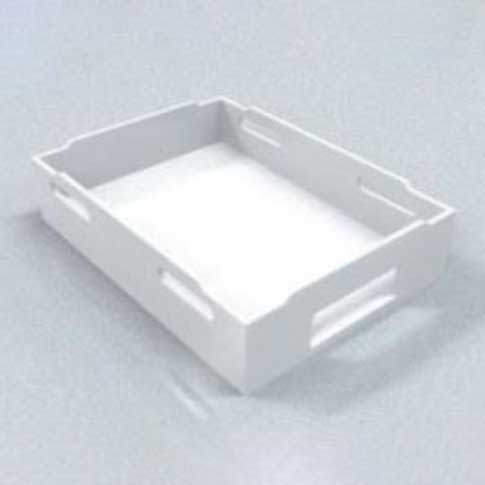

| 2D Liquid storage bag tray, HDPE | PED-5L PED-10L PED-20L PED-30L PED-50L | 5 L 10 L 20 L 30 L 50 L |  |

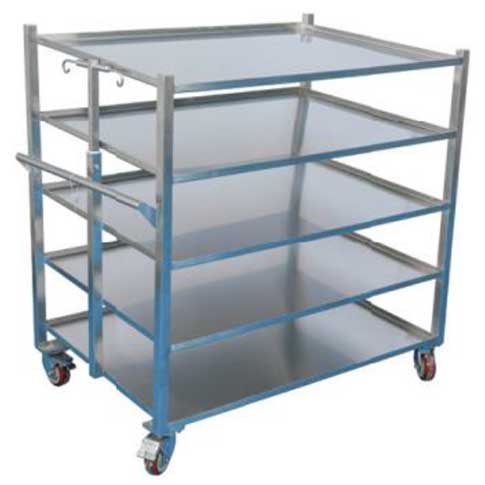

| *2D Liquid storage bag transfer cart, SUS304 | SSChart-50 L-5X | 50 L*5 layers *X row |  |
* Parameters can be customized, please contact sales representative or technician for details.
** The part No. of perforated version is adding “-1” at ends of part No. the corresponding product. For example, DNSPB-0005-1 is a 19 L liquid storage drum with connection ports.
