Lenticular Filter Housing

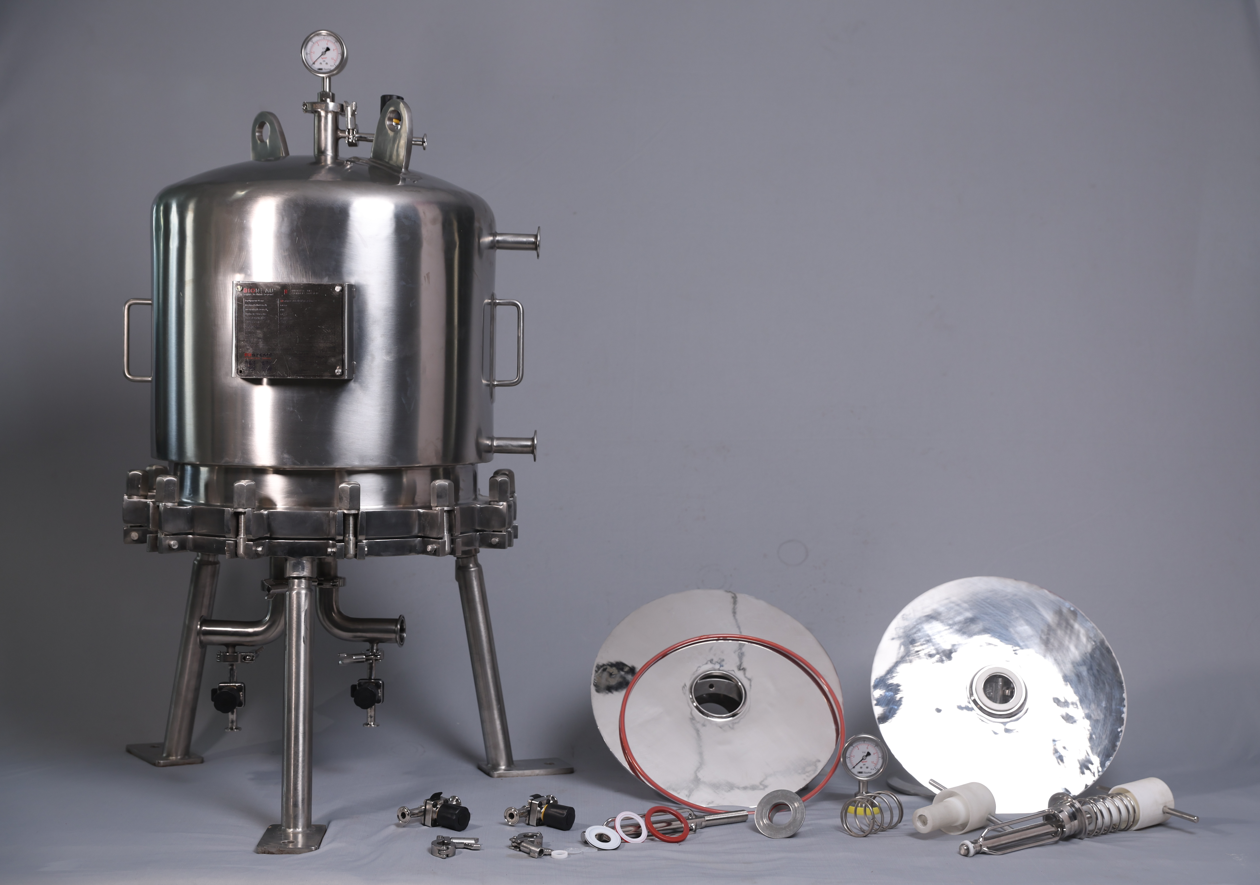

The FilSTEMS™ Lenticular Filter Housing sets a new benchmark for enclosed depth filtration systems, ensuring performance, versatility, and compliance with stringent sanitary standards. Crafted from mirror-polished 316L stainless steel, this stainless steel depth module filter housing is ideal for pharmaceutical, biotechnology, food & beverage, fine chemical, and microelectronics applications.

This housing provides exceptional flexibility by accommodating multiple depth filter modules, enabling the use of a wide variety of filter media and flow capacities. Its horizontal lenticular design simplifies installation, speeds up module change-outs, and streamlines maintenance, reducing downtime and improving operational efficiency.

Request a Quote

Accommodates versatile module sizes, including 12" and 16" lenticular filter modules
Offers an enclosed, sanitary design for high-purity liquid filtration
Uses a spring-loaded sealing system to ensure leak-free operation
Features mirror-polished 316L stainless steel for superior hygiene and corrosion resistance
Includes an optional sanitary bleed valve for venting and drainage
Provides complete sanitary systems with valves, gauges, piping, CIP capability, and skid-mounted configurations

Housing Model	Single shell / Split shell
MOC	SS316, SS316L, Hastelloy
No. of Modules	1, 2, 3, 4
Inlet/Outlet Connection	1" / 1.5" Triclamp / Flange
Module Diameter	8” / 12” / 16”
End Connection	DOE
Max Pressure	10 bar @ 40°C (130 psi @ 104°F)
Max Temperature	6.8 bar @ 150°C (95 psi @ 302°F)
Gaskets & Rings	Silicone / FERG / PERG / Viton / EPDM
Surface Finish	Electropolished
Roughness Average	< 0.5 µm
Drain Valve	Diaphragm Valve with 8mm Hose Connection
Gauge Port	1.5” TC
Sterilization	SIP / Autoclaving
Documentation	User Manual, COA, Hydraulic Test
Special Documentation	IQ / OQ / DQ / PQ*

Pre-filtration
Clarification
Beverages
Drinking water
Fine chemicals
Pharmaceuticals
High-loading liquids for liquid filtration

Filtration Skid – Bioneau® FilSTEMS Pro – Manual Custom Designed
Filtration Skid – Bioneau® FilSTEMS Scale – Semi-Automated Custom Designed
Filtration Skid – Bioneau® FilSTEMS Auto – Fully Automated Custom Designed

MOC		No. of Cartridges		Canopy Length		Cartridge Configuration		Gasket MOC		Coatings/Int. Finish		Accessories
S1	SS 316L	O1	1	A	8"	1	DOE	S	Silicone	E	Electropolished	A	Jacketed
S2	SS 316	O2	2	B	12"			F	FERG SIL/VIT*	G	Mirror Polished Ra <0.5 µm	B	Non-Jacketed
H1	Hastelloy C22	O3	3	C	16"			P	PERG SIL**	H	Halar coated
H2	Hastelloy C276	O4	4					E	EPDM	P	PFA Lined
								V	FKM	G	Glass lined
								K	FFKM
Drain Ports		Vent Valves		Outer Finish		Housing End Conn		Pipe Size		Gauge
0	No Drain Port	1	DIN 11851 Male Part Dn25	M	Outer Finish	1	Sanitary TC	A	1/2"	1	Gauge with 1" TC
1	DIN 11851 Male Part Dn25	2	Needle Valve with 8mm Hose Barb	G	Mirror Ra <0.5 µm	2	ASA150 Flange	B	3/4"	2	Gauge with BSP Threading
2	Needle Valve with 8mm Hose Barb	3	Diaphragm with 8mm Hose Barb			3	SMS Union	C	1"
3	Diaphragm with 8mm Hose Barb	4	Ball Valve SS316			4	SMS Union	D	1.5"
4	Diaphragm with 1/2" TC	5	Quick Coupling Diaphragm			5	Others***	E	2"
5	Drain ASME BPE 1.5"					6	Weld Pipe	F	2.5"
6	Quick Coupling Diaphragm							G	3"
