Peroxide-cured silicone with polyester braid reinforcement for high-pressure sterile transfer, -90°C to +220°C, 1/4in to 4in.

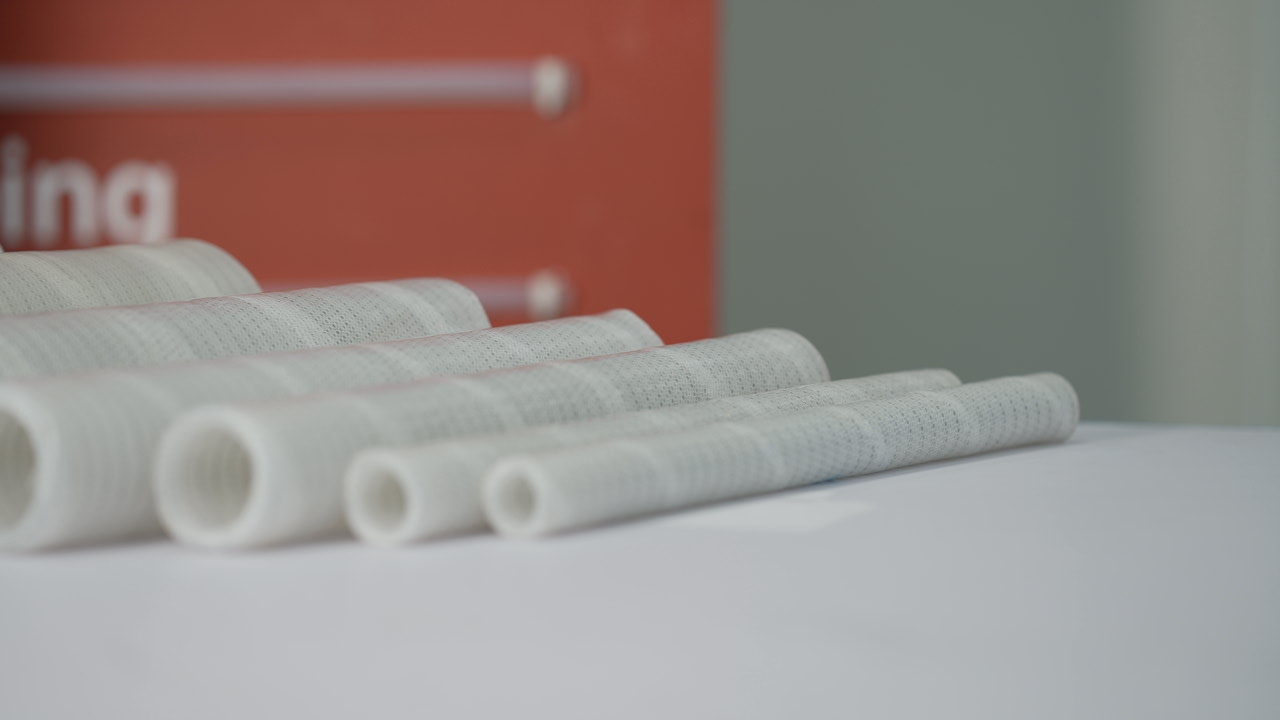

Bioneau® SiliVacBraid Silicone Braided Helical Wired Hose is an advanced fluid transfer hose engineered for high-performance applications in biopharmaceutical, biotechnology, and high-vacuum environments. Constructed with platinum-cured silicone and reinforced using SS316L helical wire and polyester braiding, it delivers superior pressure resistance, excellent vacuum handling, and flexibility. This design also enables static dissipation for enhanced safety in volatile environments. It is ideal for use in cleanroom and sterile fluid transfer applications.
| SKU Code | Size In MM (Idx OD) | Size in Inch (ID) | Min Working Pressure Bar (psi) @ 260 C | Min Burst Pressure Bar (psi) @ 260 C | Min Bend Radius in mm (inch) | Vacuum mm Hg @ 260 C | LENGTH |
|---|---|---|---|---|---|---|---|
| BN2580NF0104 | 6x13 | 1/4" | 12.5 | 48.5 | 60 | 780 | 50' |
| BN2580NF1132 | 9x16 | 11/32" | 12 | 48 | 70 | 780 | 50' |
| BN2580NF0102 | 12x20 | 1/2" | 11 | 41.5 | 70 | 760 | 50' |
| BN2580NF0508 | 16x24 | 5/8" | 10.5 | 36 | 85 | 760 | 50' |
| BN2580NF0304 | 19x27 | 3/4" | 9 | 35 | 95 | 760 | 50' |
| BN2580NF0100 | 25x35 | 1" | 8.5 | 35 | 140 | 760 | 50' |
| BN2580NF0125 | 32x42 | 1 1/4" | 8.5 | 35 | 150 | 600 | - |
| BN2580NF0150 | 37x47 | 1 1/2" | 7.5 | 32 | 175 | 600 | - |
| BN2580NF0200 | 50x62 | 2" | 6.5 | 30 | 245 | 550 | - |
| BN2580NF0250 | 64x76 | 2 1/2" | 4 | 20 | C/P | 500 | - |
