- Pharmaceutical & Biotech Manufacturing
- Single-Use Systems
- Peristaltic Pump Tubing
- Filling & Packaging Lines
- Medical Devices & Diagnostics
- CIP/SIP Systems
- Food & Beverage Processing
- Chemical & Laboratory Use

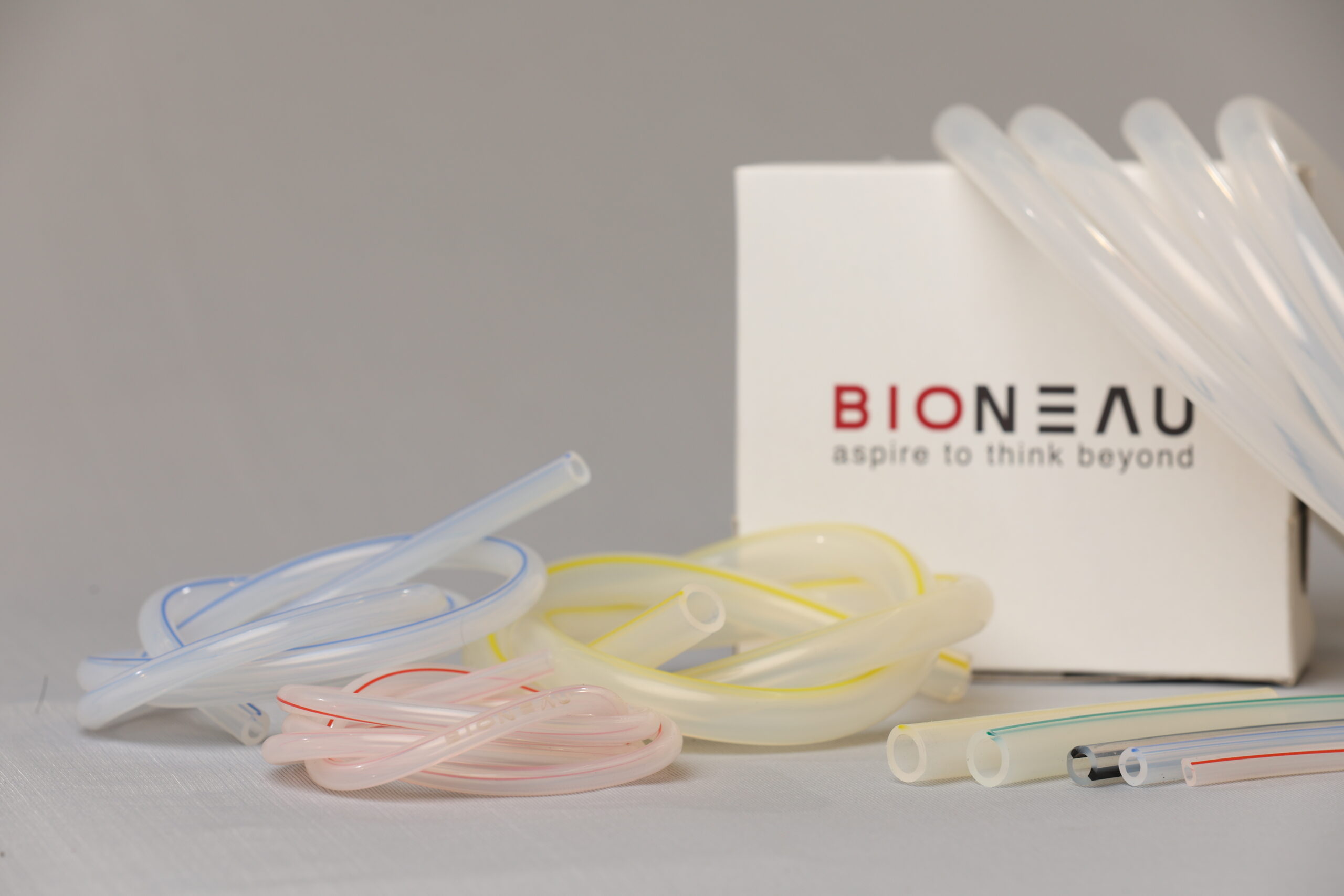

Bioneau® Silicone Pharma Tubing is designed to meet the stringent requirements of pharmaceutical, biotech, and medical fluid transfer applications. Manufactured from ultra pure platinum-cured medical-grade silicone, our tubing delivers exceptional purity, flexibility, and durability while complying with international regulatory standards.
It is non-toxic, non-leaching, and resistant to extreme temperatures, making it ideal for sterile processing environments. The smooth inner bore ensures consistent fluid flow, prevents particulate shedding, and minimizes the risk of contamination.
| Physical Properties | Test Method | Unit | Specifications |
|---|---|---|---|
| Hardness | ASTM D 2240 | Shore A | 60±5 |
| Tensile Strength (min) | ASTM D 412 | Kg/cm2 | Min 90 |
| Elongation at Break (Min) | ASTM D 412 | % | Min 450 |
| Modulus @100% | ASTM D 412 | Kg/cm2 | Min 15 |
| Modulus @200% | ASTM D 412 | Kg/cm2 | Min 30 |
| Modulus @300% | ASTM D 412 | Kg/cm2 | Min 45 |
| Tear Strength (Min) - (Type - C) | ASTM D 624 | Kg/cm | Min 24 |
| Temperature Range | - | °C | -40 TO 220 |
| Specific Gravity | - | g/cm³ | Min 1.15 |
| Product Number | ID | OD | Wall thickness | PUMP SIZE | STANDARD LENGTH feet (') | ||
|---|---|---|---|---|---|---|---|
| BN2500NF0158-0476 | 1.58 | 1/16" | 4.76 | 3/16" | 1/16" | #14 | 25' |
| BN2500NF0238-0556 | 2.38 | 3/32" | 5.56 | 7/32" | 1/16" | #119 | 25' |
| BN2500NF0238-0673 | 2.38 | 3/32" | 8.73 | 11/32" | 1/8" | #16 | 25' |
| BN2500NF0318-0635 | 3.18 | 1/8" | 6.35 | 1/4" | 1/16" | #03 #25 | 25' |
| BN2500NF0318-0794 | 3.18 | 1/8" | 7.94 | 5/16" | 3/32" | #25 | 25' |
| BN2500NF0318-0953 | 3.18 | 1/8" | 9.53 | 3/8" | 1/8" | #15 | 25' |
| BN2500NF0397-0714 | 3.97 | 5/32" | 7.14 | 9/32" | 1/16" | - | 25' |
| BN2500NF0478-0794 | 4.76 | 3/16" | 7.94 | 5/16" | 1/16" | #17 | 25' |
| BN2500NF0478-0953 | 4.76 | 3/16" | 9.53 | 3/8" | 3/32" | #24 | 25' |
| BN2500NF0635-0794 | 6.35 | 1/4" | 7.94 | 5/16" | 1/32" | #26 | 25' |
| BN2500NF0635-0953 | 6.35 | 1/4" | 9.53 | 3/8" | 1/16" | #35 | 25' |
| BN2500NF0635-5874 | 6.35 | 1/4" | 58.74 | 37/16" | 3/32" | #36 | 25' |
| BN2500NF0635-0127 | 6.35 | 1/4" | 12.7 | 1/2" | 1/8" | #73 | 25' |
| BN2500NF0794-1111 | 7.94 | 5/16" | 11.11 | 7/16" | 1/16" | - | 25' |
| BN2500NF0794-0127 | 7.94 | 5/16" | 12.7 | 1/2" | 3/32" | #82 | 25' |
| BN2500NF0794-1429 | 7.94 | 5/16" | 14.29 | 9/16" | 1/8" | #88 | 25' |
| BN2500NF0953-0127 | 9.53 | 3/8" | 12.7 | 1/2" | 1/16" | - | 25' |
| BN2500NF0953-1429 | 9.53 | 3/8" | 14.29 | 9/16" | 3/32" | #89 | 25' |
| BN2500NF0953-1588 | 9.53 | 3/8" | 15.88 | 5/8" | 1/8" | #191 | 25' |
| BN2500NF0953-1905 | 9.53 | 3/8" | 19.05 | 3/4" | 3/16" | #90 | 25' |
| BN2500NF0127-1588 | 12.7 | 1/2" | 15.88 | 5/8" | 1/16" | #92 | 25' |
