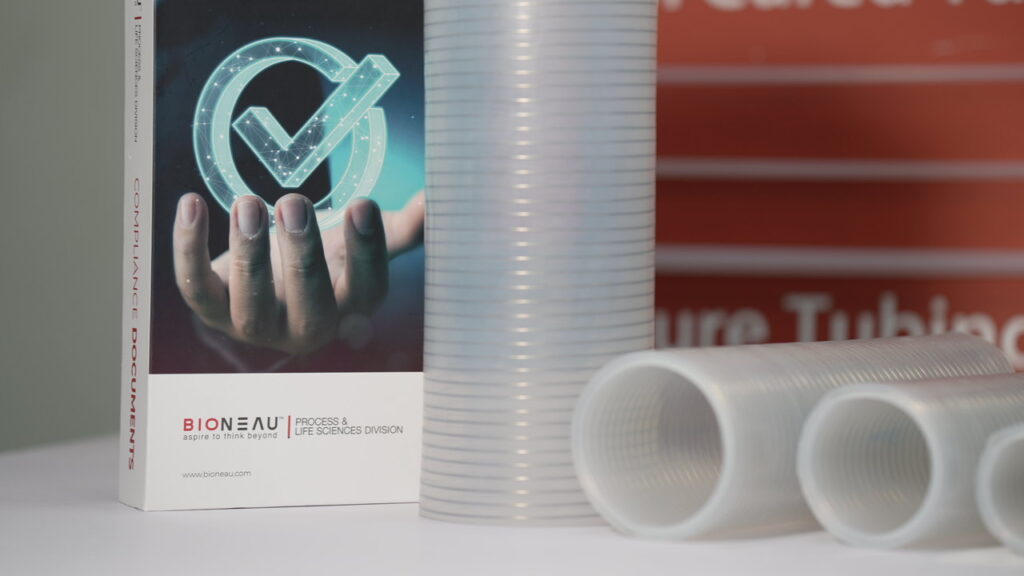

SiliWrap Silicone Multi-braided Helical Wired Hose is a high-strength, ultra-flexible transfer hose engineered for critical applications in pharmaceutical, bioprocessing, and high-purity fluid systems. Constructed with platinum-cured silicone, reinforced by SS316L helical wire, and layered with multiple polyester fabric braids, this hose ensures excellent burst pressure resistance and vacuum stability.
Designed for high-pressure, high-temperature, and static-sensitive applications, SiliWrap provides enhanced durability, traceability, and cleanroom-grade performance. The multi-braid configuration significantly boosts pressure handling over standard or single-braided options.
| SKU Code | Size In MM (Idx OD) | Size in Inch (ID) | Min Working Pressure Bar (psi) @ 260 C | Min Burst Pressure Bar (psi) @ 260 C | Min Bend Radius in mm (inch) | Vacuum mm Hg @ 260 C | LENGTH |
|---|---|---|---|---|---|---|---|
| BN2590NF0104 | 6x13 | 1/4" | 18.5 | 38 | 60 | 760 | 50' |
| BN2590NF1132 | 9x16 | 11/32" | 18 | 38 | 70 | 760 | 50' |
| BN2590NF0102 | 12x20 | 1/2" | 16 | 38 | 80 | 760 | 50' |
| BN2590NF0508 | 16x24 | 5/8" | 14 | 34 | 90 | 760 | 50' |
| BN2590NF0304 | 19x27 | 3/4" | 12 | 34 | 100 | 760 | 50' |
| BN2590NF0100 | 25x35 | 1" | 10.5 | 34 | 120 | 760 | 50' |
| BN2590NF0125 | 32x42 | 1 1/4" | 10 | 32 | 180 | 500 | - |
| BN2590NF0150 | 37x47 | 1 1/2" | 10 | 32 | 220 | 400 | - |
| BN2590NF0200 | 50x62 | 2" | 8 | 30 | 300 | 300 | - |
| BN2590NF0250 | 64x76 | 2 1/2" | 6 | 24 | 350 | C/P | - |
| BN2590NF0300 | 75x87 | 3" | 5 | 15 | C/P | C/P | - |
| BN2590NF0400 | 100x112 | 4" | 5 | 15 | C/P | C/P | - |
