membrane holders

Membrane

  • Disc Holders for Aseptic Liquid Filtration and Sterilization Grade Cartridge Filter Housings
Aseptic Liquid Filtraton-Electropolished Stainless Steel Membrane Disc Holders for Aseptic Liquid FiltrationNo corrosion. mdi stainless steel disc filter holders are made up of corrosion resistant SS 316L grade to fit membrane filters for aseptic filtration of liquids. No compromise in Quality. These holders are autoclavable and can be cleaned easily to avoid crosscontamination.

Specifications

Size142 mm, 293 mm
Inlet Connection1.5”TC
Outlet Connection1.5”TC
Size of Membrane Used142 mm, 293 mm
Max. Operating Pressure100 ps
Max. Operating Temperature150°C
Material of ConstructionSS 316L
Gaskets and RingsSilicone
Surface FinishElectropolished
Filtration Area142 mm – 120 cm² 293 mm – 572 cm²
SterilizationAutoclaving

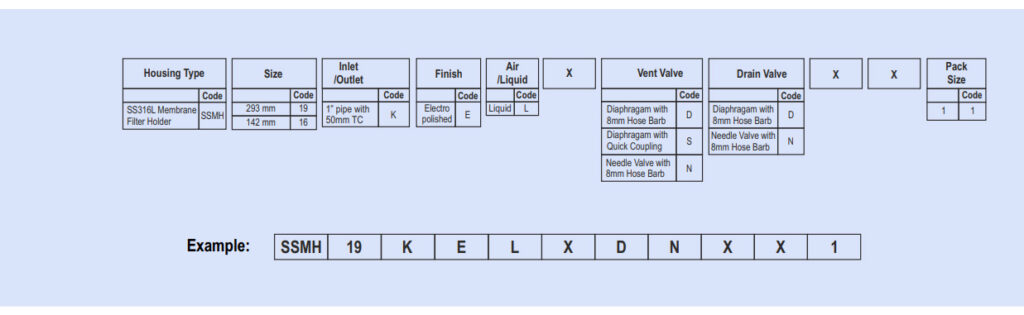

ORDERING INFORMATION
